产品信息

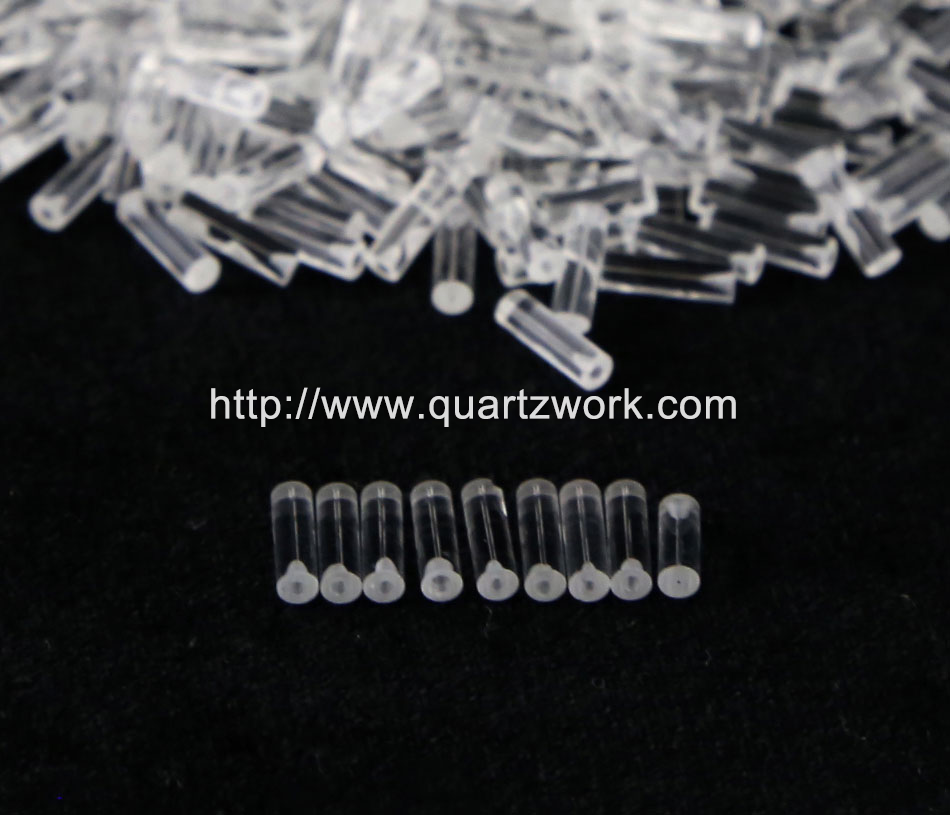

• 名称：一端喇叭口锥孔光纤尾纤玻璃毛细管

• 品牌：中成石英（ZCQ)

• 毛细管规格参数：

  毛细管  Capillary Tube & Rod
  参数Parameter	尺寸 Diameter	公差 Tolerance	单位Unit
  长度 Length	1~2000	±0.2	mm
  外经 OD	0.2~11	±0.03
  内径 ID	0.06~10	±0.03
  异型毛细管/棒  Shaped Capillary Tube & Rod
  形状 Shape	圆形管、方形管、矩形管、锥形管、D形管、椭圆管、梯形管、六边形管、三角型管、V型棒、U型棒 Circular tube, Square tube, Rectangle tube, Conical tube, D-shaped tube, Elliptical tube, Trapezoidal tube, Hexagonal tube, Triangular tube, V-shaped rod, U-shaped rod
  孔径 Aperture	多孔（双孔、四孔、六孔，七孔，八孔，双排三孔）、椭圆孔、矩形、正方形、三角形，偏心孔、D型孔 Multi-hole (double holes, four holes, six holes, seven holes, eight holes, double row three holes), elliptical, rectangle, square, triangle, eccentric, D-shaped
  羟基含量  Hydroxyl group	＜10ppm
  材料 Material	石英玻璃、高硼硅玻璃、其他材料 Quartz glass, borosilicate golass, and other materials
